865080142007
Manufacturer:
Wurth Electronics
Mfr.Part #:
865080142007
Datasheet:
Description:

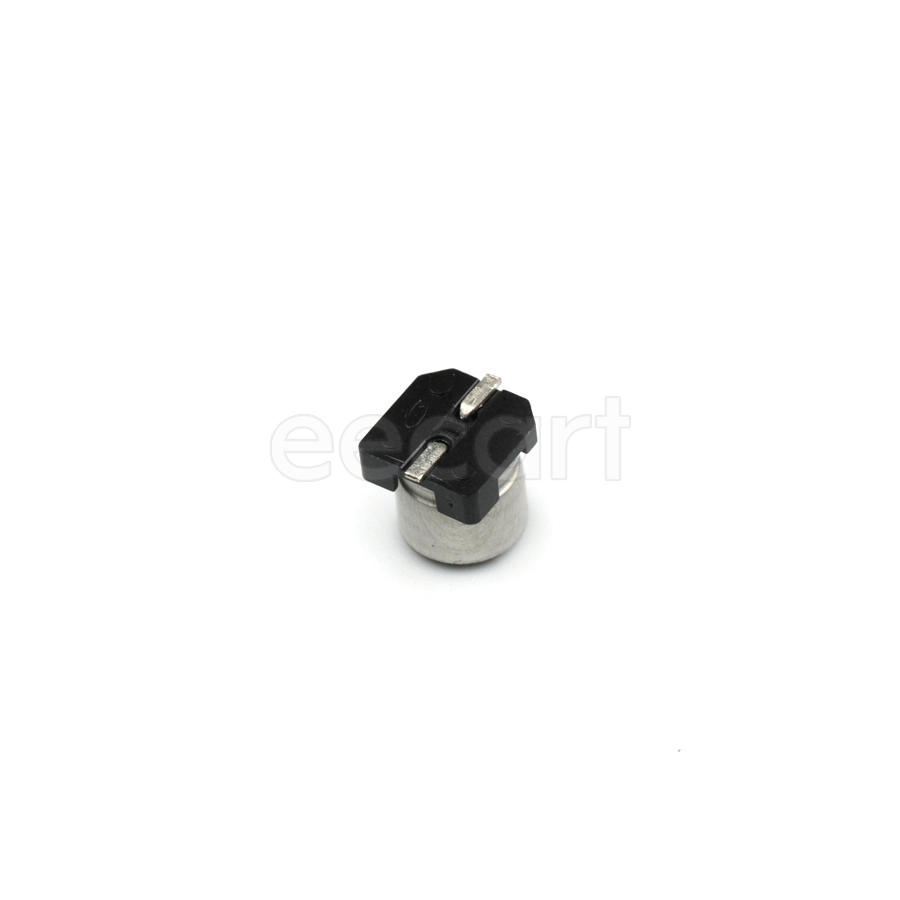

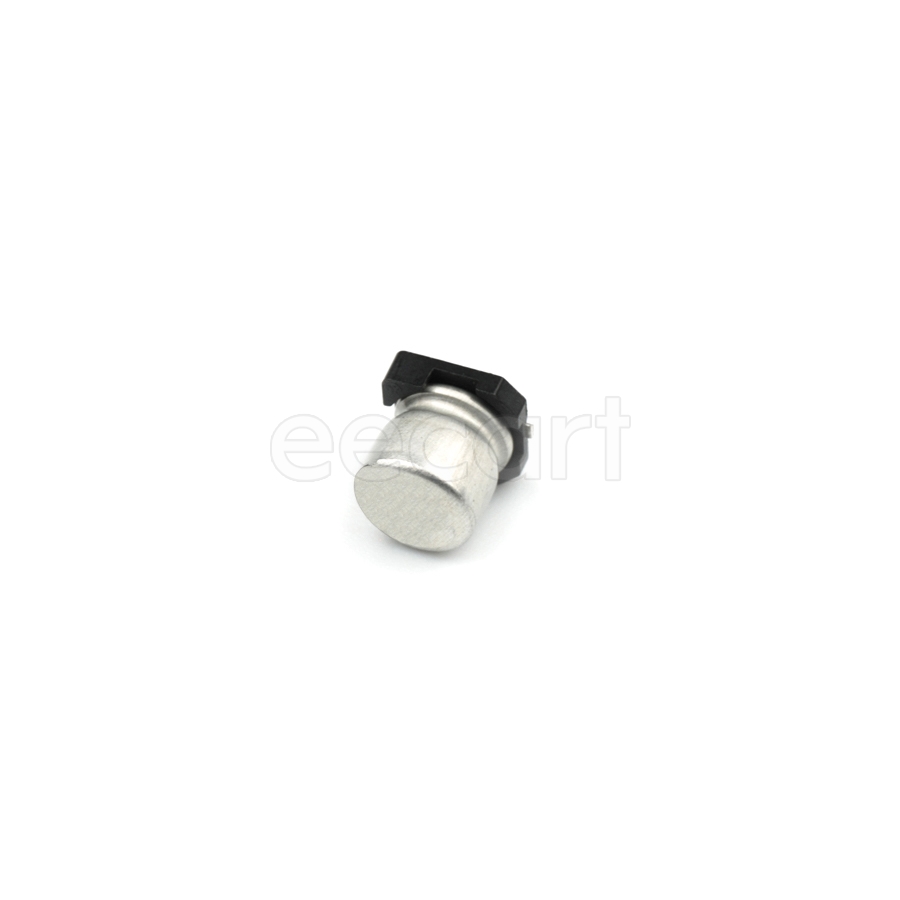

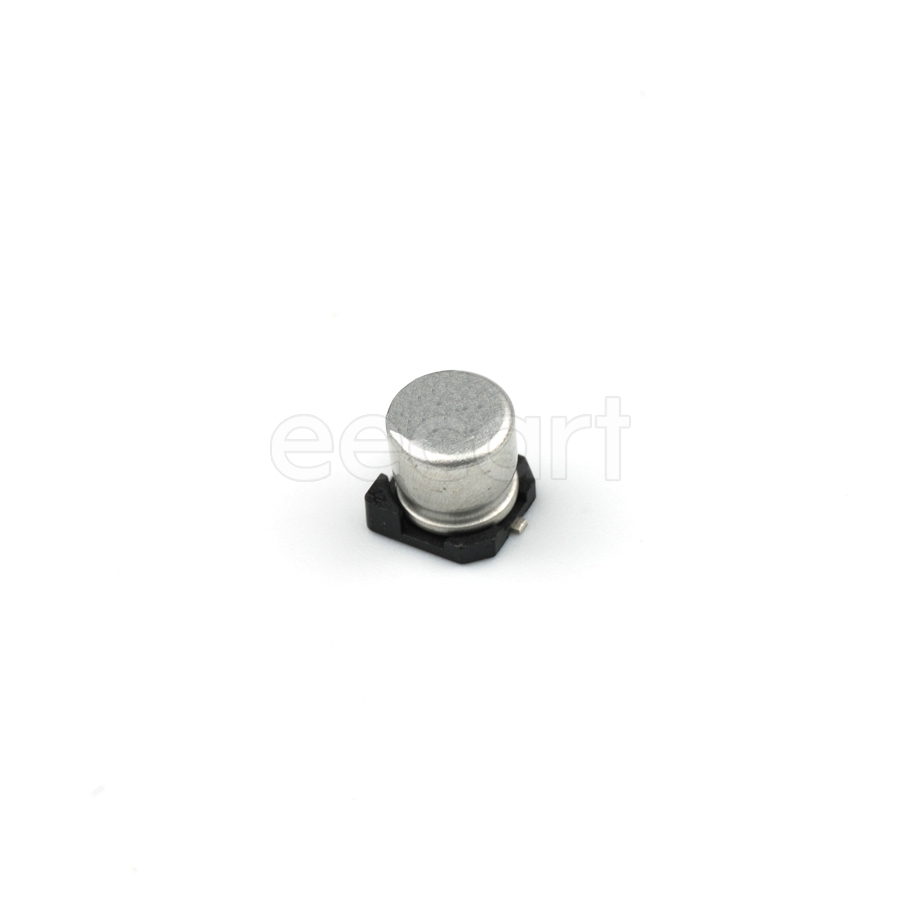

Aluminum Electrolytic Capacitors 5.00mmD×5.50mmH SMD/SMT 100 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 170 mA |
| Height - Seated (Max) | 5.52 mm |
| Diameter | 5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 5.5 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| RoHS | Compliant |
| Polarity | Polar |
| REACH SVHC | Unknown |
| Impedance | 800 mΩ |
| Ripple Current (AC) | 170 mA |
| Ripple Current @ High Frequency | 170 mA @ 100 kHz |
| Ripple Current @ Low Frequency | 110.5 mA @ 120 Hz |
